Phoenix
The Phoenix is our premium residential lift, offering exceptional versatility in size and design. With extensive customisation options and flexible installation methods—including delivery as a complete unit or site-assembled installation—the Phoenix is engineered to integrate seamlessly into your home. Designed for both performance and aesthetic harmony, it delivers the perfect blend of luxury, adaptability, and precision craftsmanship.
Overview
- Maximum Travel:
- 7m
- Weight Capacity:
- Up to 630kg
- Rated Speed:
- 0.185m/s
- Compliance:
- AS1735, NCC & DDA requirements
- Control:
- Fully Automatic Operation
- Installation:
- Internal and External
- Power Supply:
- 230V Single Phase (Optional 400V Three Phase)
- Door Configuration:
- Left or right swing configuration, supporting up to two doors per landing
- Pit Depth:
- 100mm

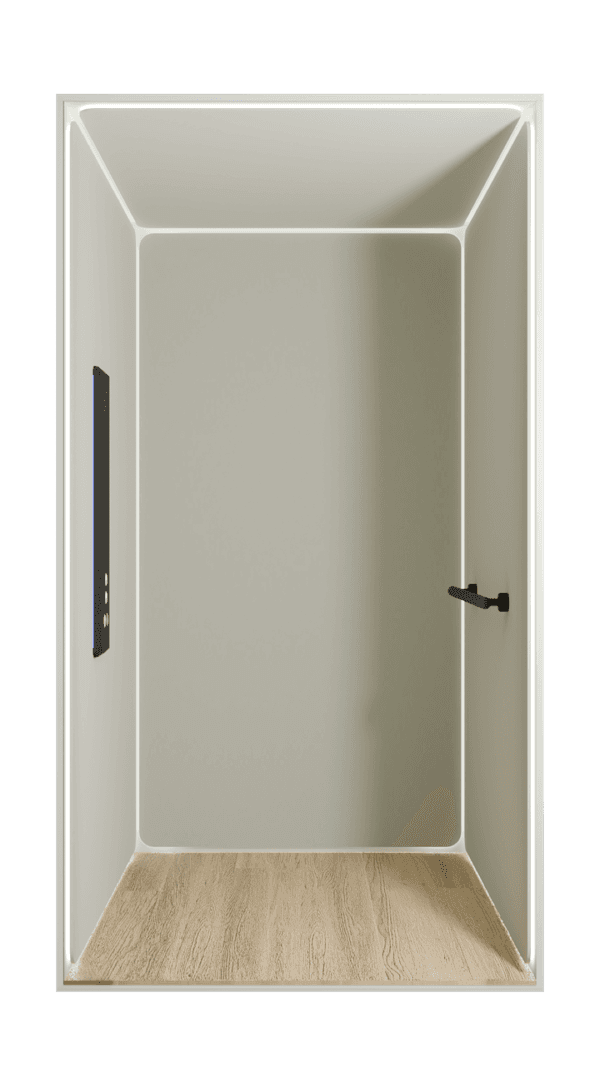

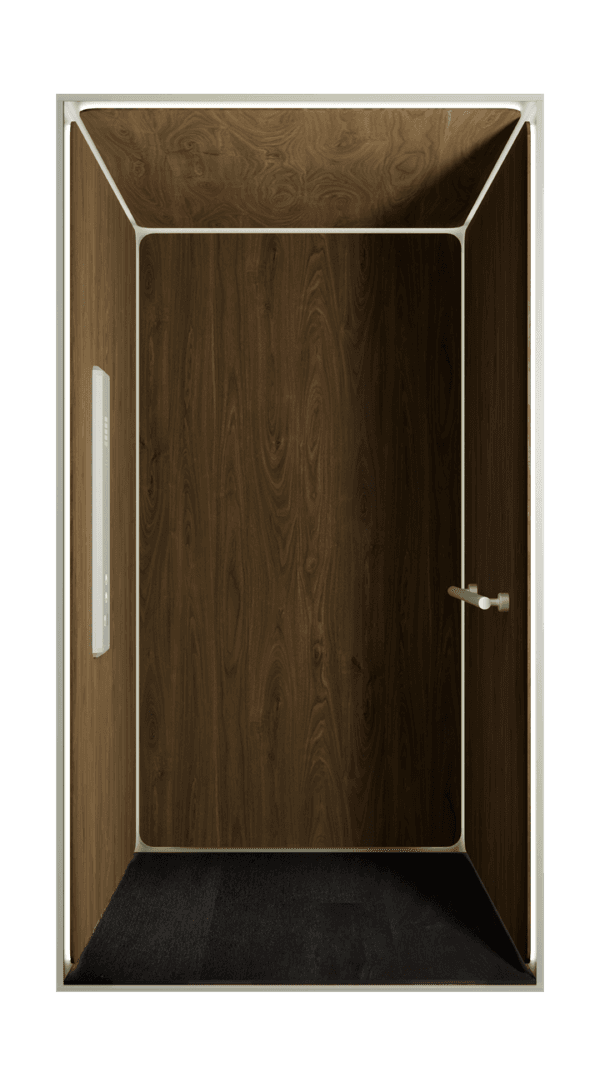

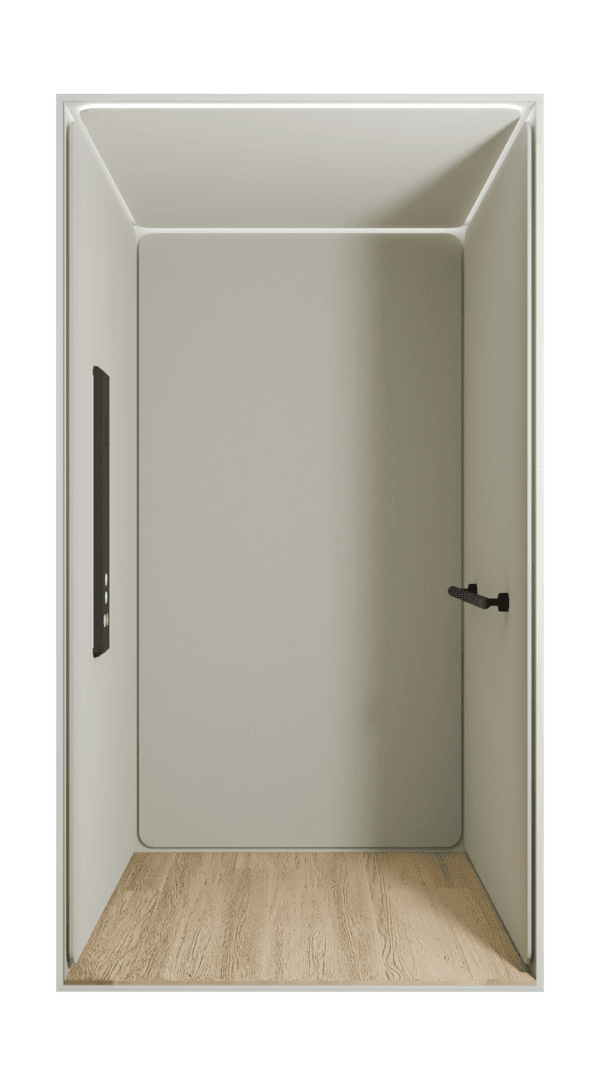

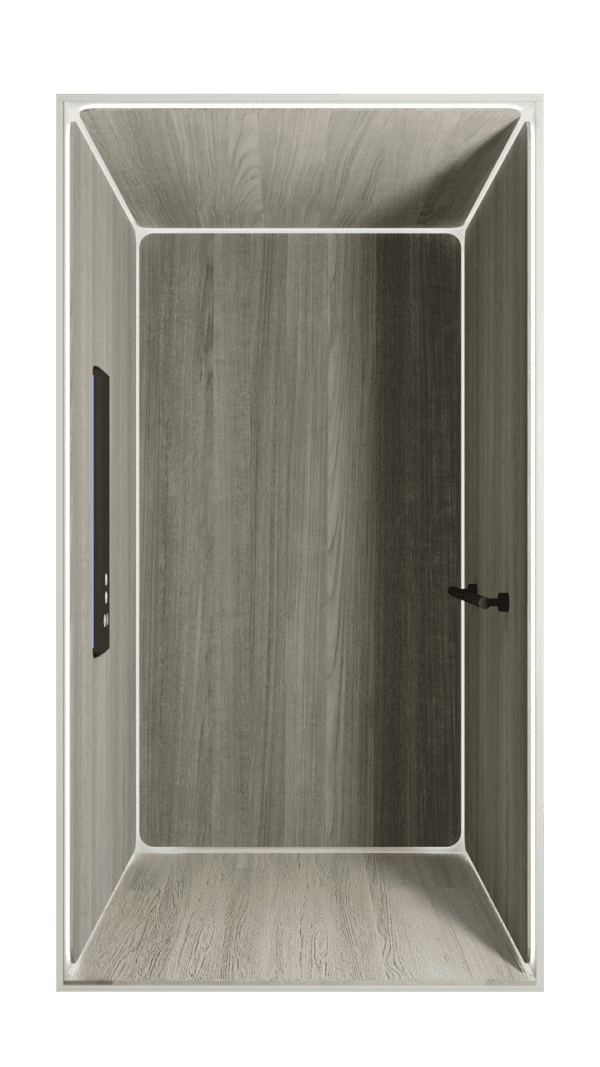

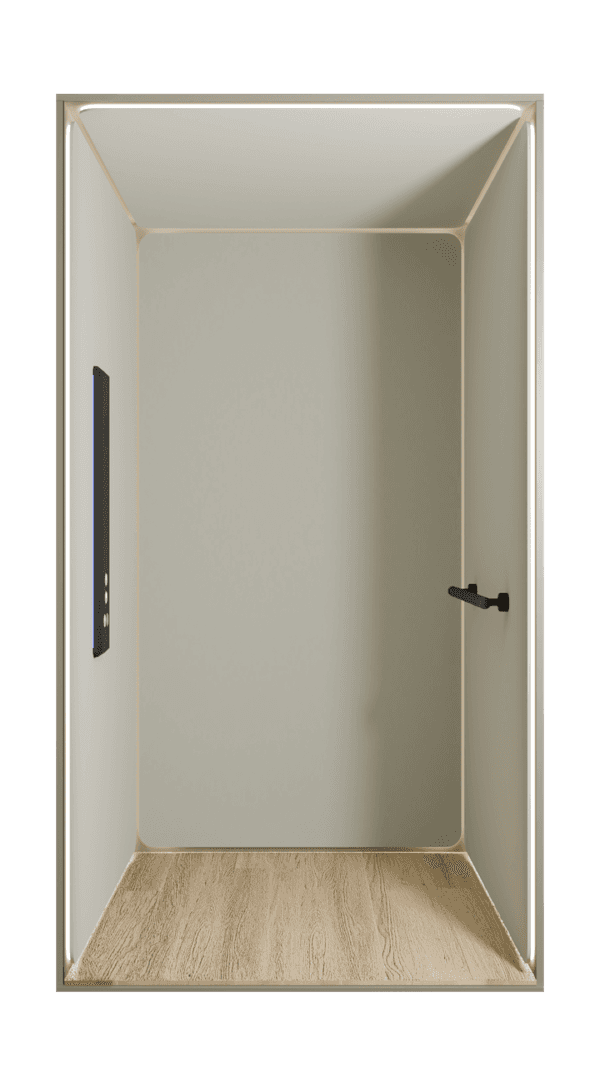

Customised For Your Home

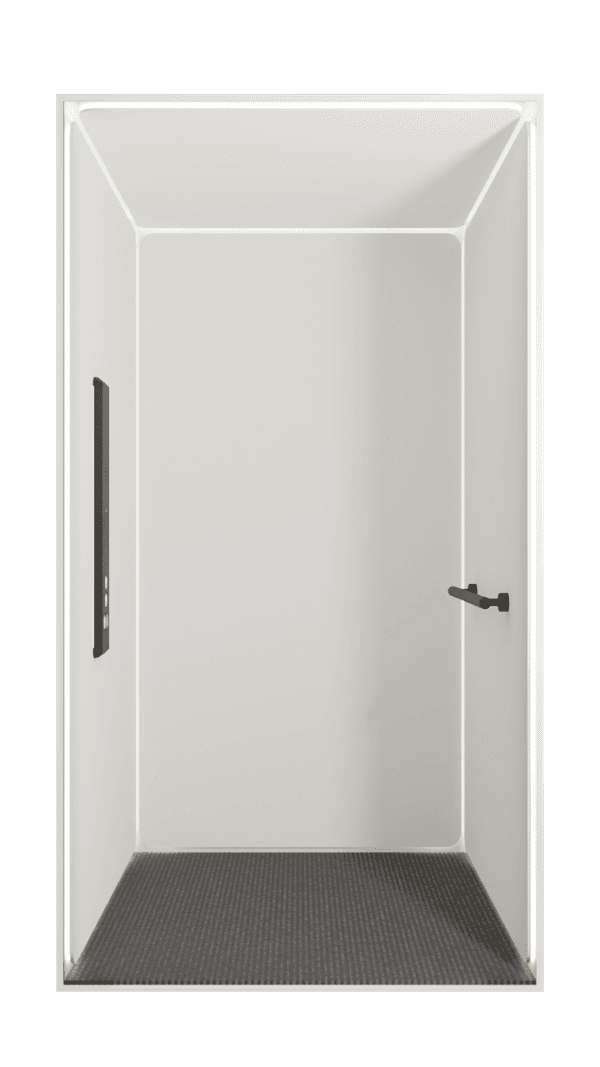

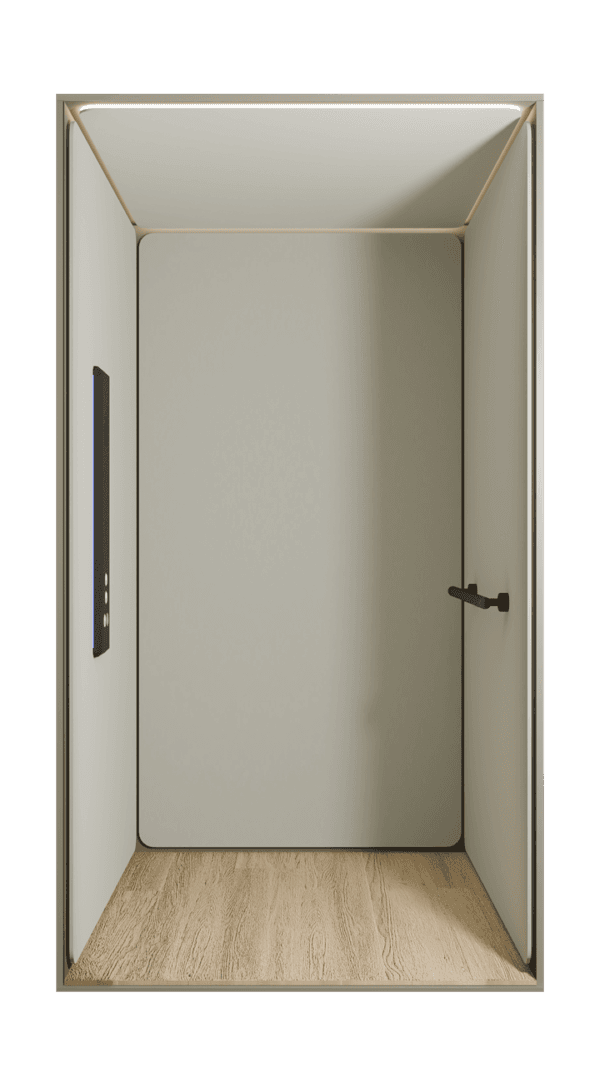

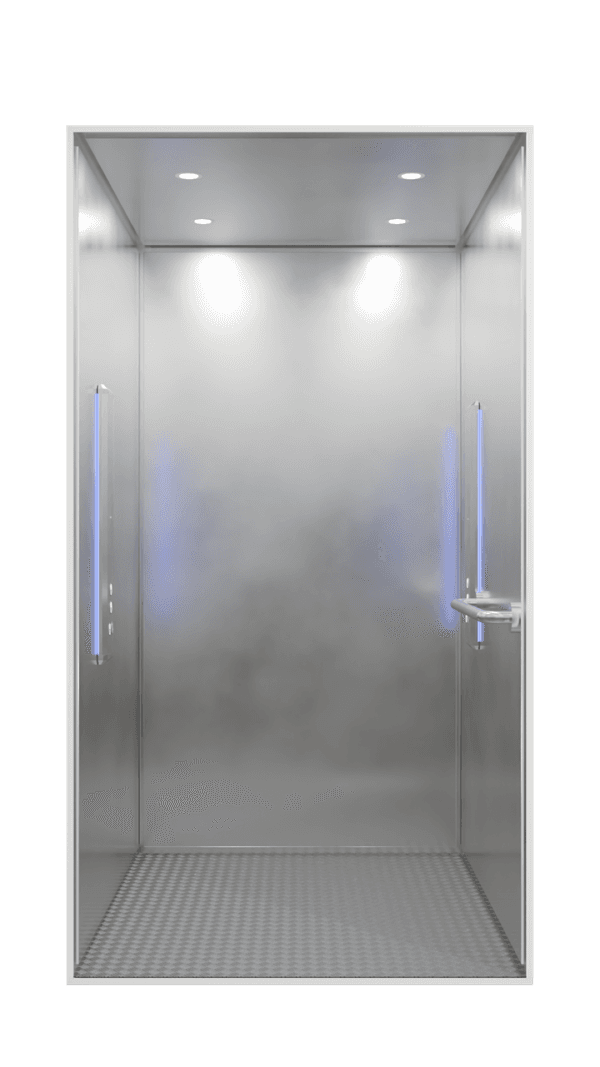

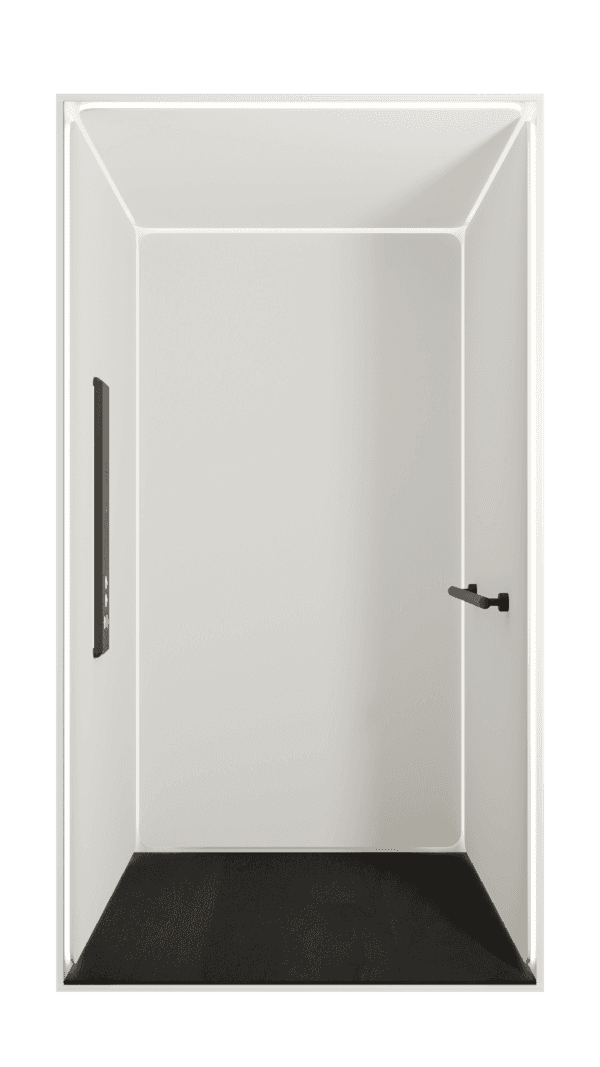

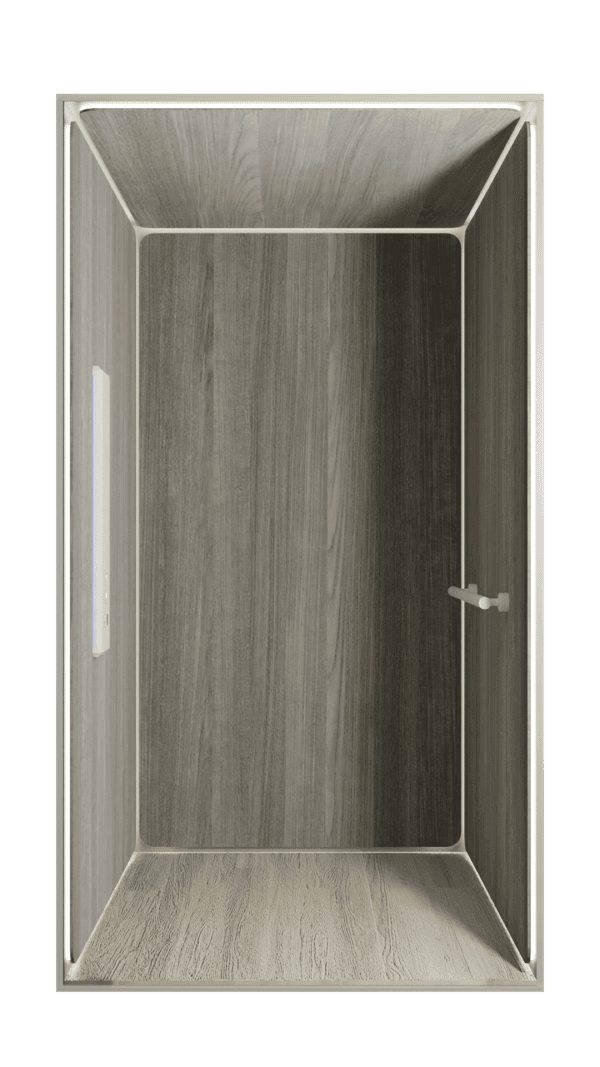

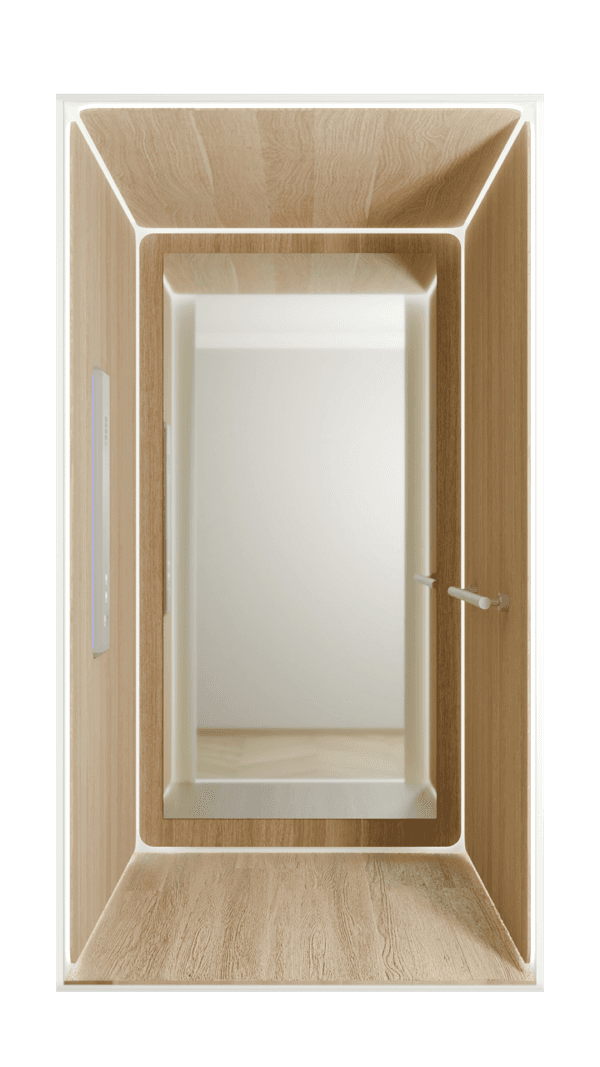

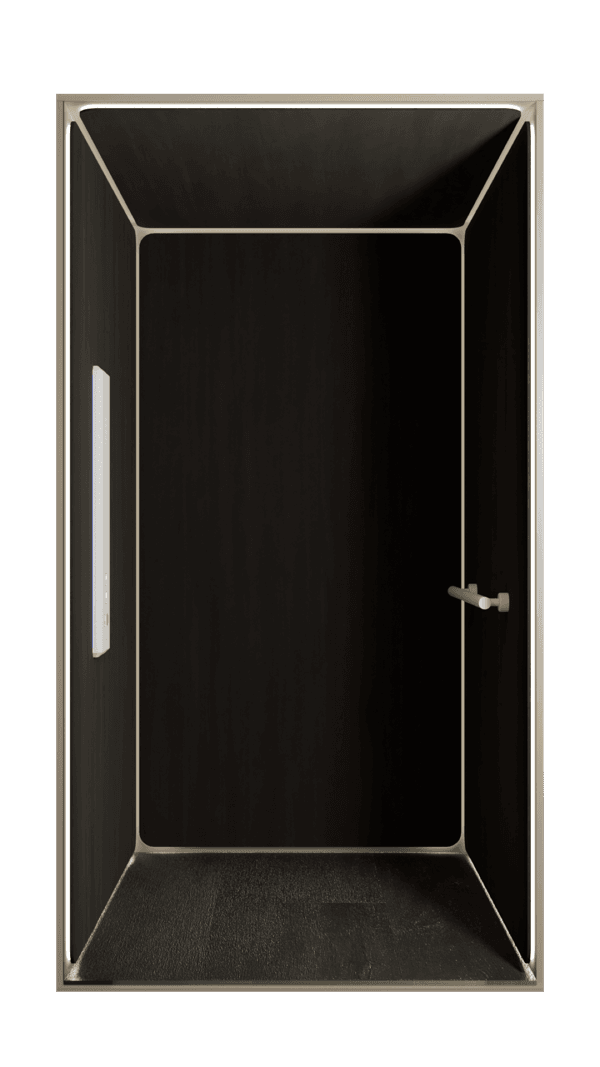

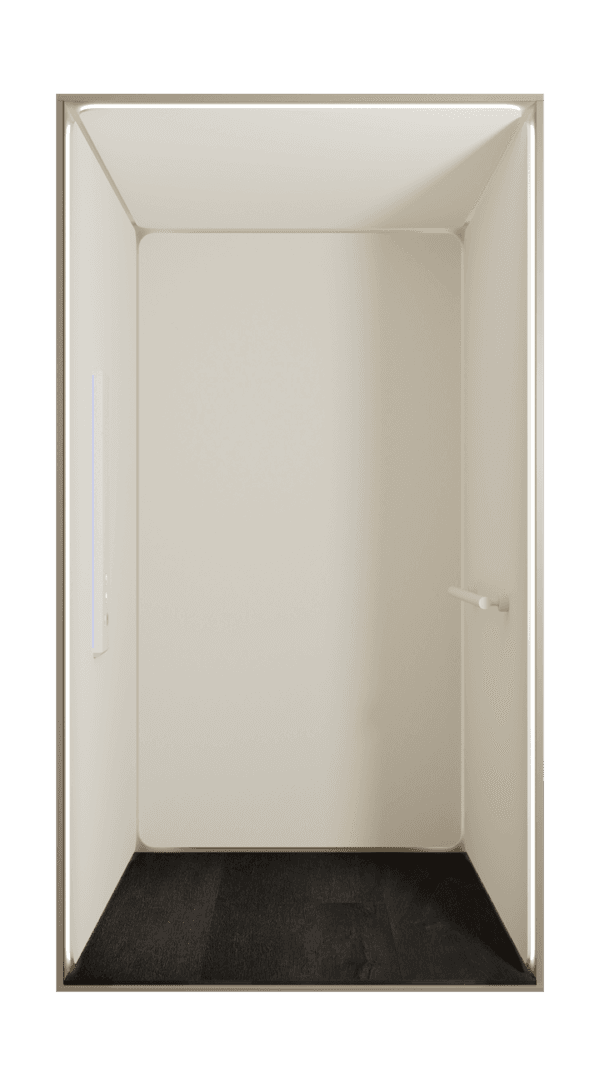

Phoenix has an extensive range of available finishes.
Colour Options
We have 100s of colour options available, including mirrors, LED lighting and much more. Ask our team or visit one of our showrooms to find out more.
Wall Panels
Premium moisture-resistant MDF panels from Laminex in an enormous range of colours and surface finishes such as matte or gloss.
Flooring
Premium carpet or laminate flooring options, or supplied without flooring to be finished on site by the builder and matched to the landing.
Doors
Manual or power operated glass panel swing doors with a white or black finish.
Control Panel
Pushbutton control panel available in white, silver or black.
Handrails
Available in either returned or shaft and post styles, finished as brushed stainless steel or powdercoated.

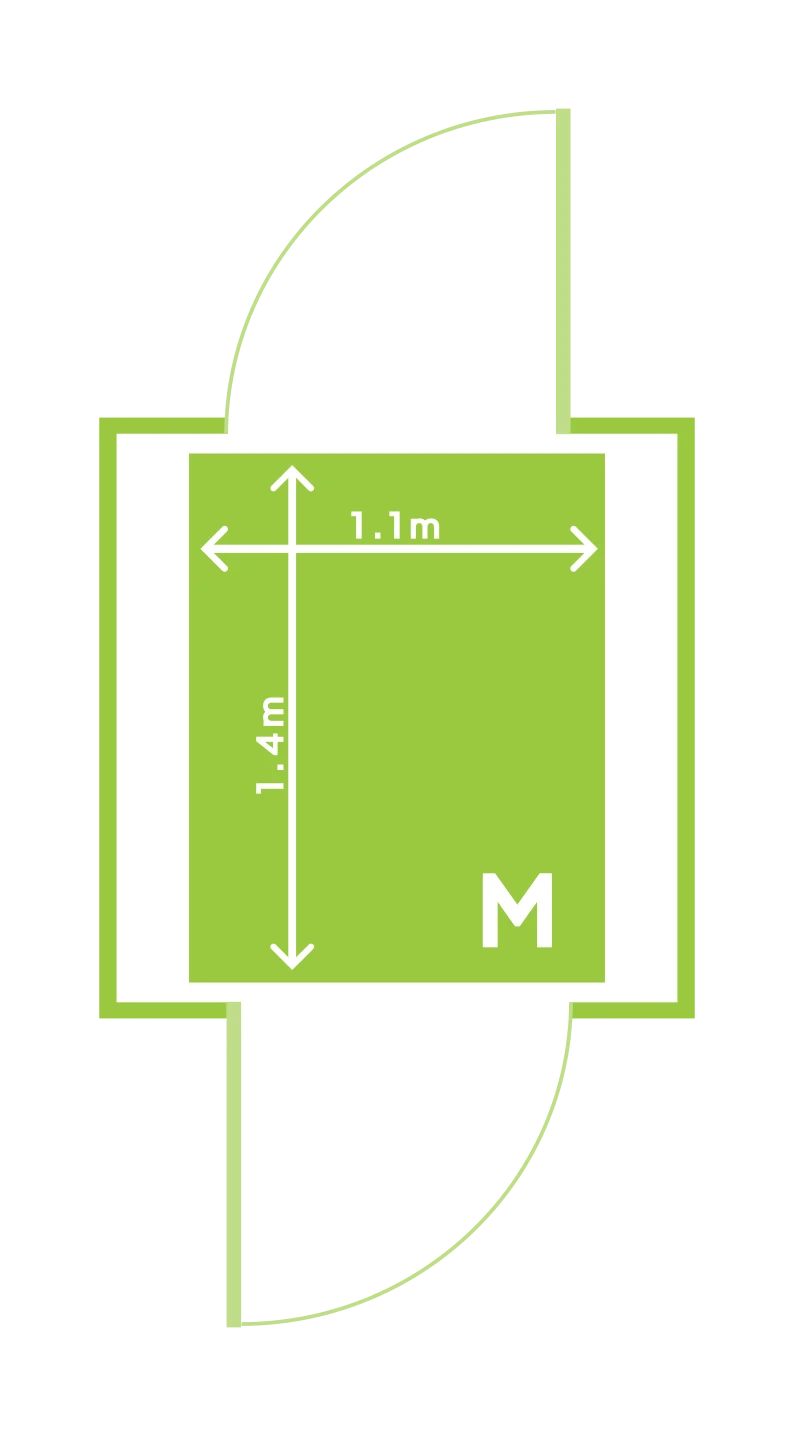

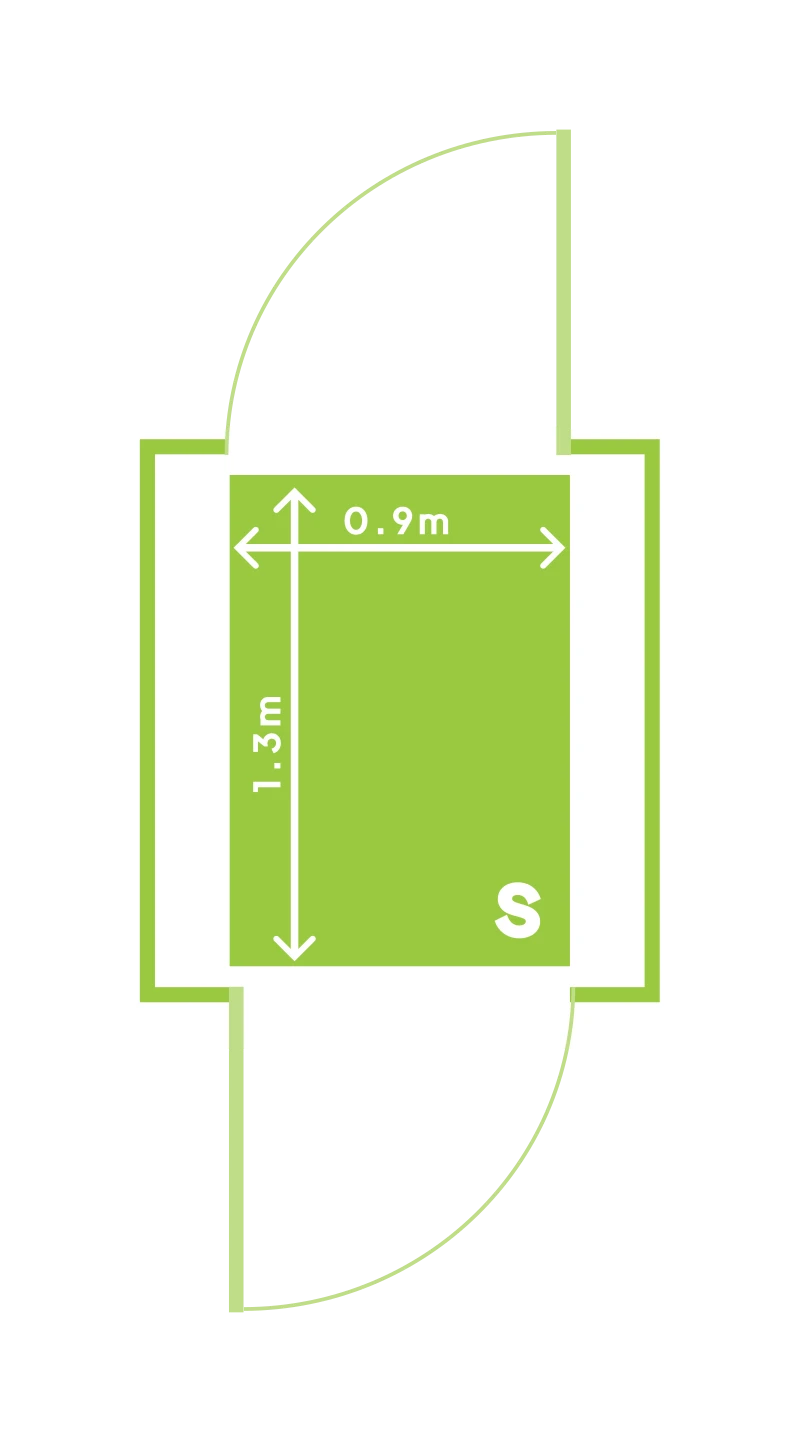

Customised For Your Space
Safety Features
Strong Hydraulic Drive System — Uses dual oil-hydraulic, chain-over cylinders for smooth, stable, and reliable lifting — reducing jolt or sudden movements.
Emergency Telephone & Alarm — The lift is fitted with an in-car emergency phone and alarm to allow immediate communication if assistance is required.
Manual Lowering Valve — For added safety and peace of mind, the lift includes a manual lowering option to bring the car to a safe level if needed.
Automatic Sliding Doors as Standard — Sliding doors improve safety and accessibility — reducing trip hazards and making entry/exit easier.
Emergency Battery Backup Lowering & Lighting — In case of a power failure, the system includes an emergency backup lowering system so the lift can be safely lowered, plus backup lighting for visibility.
Warranty and Maintenance
- 10 Year structural warranty covering the strength and integrity of the lift structure.
- 3 Year Conditional Warranty covering both labour and parts.
- Servicing required every 12 months to maintain warranty and optimal performance.
- All replacement parts are stocked locally for fast turnaround and minimal downtime.
